Twist-Lock Driver Installation Tool

SKU: 120751

product image zoom product image
product image
product image
product image

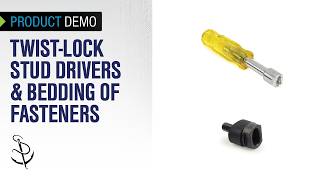

Twist Lock Stud Drivers & Bedding of Fasteners
product image

Twist-Lock Driver Installation Tool

SKU: 120751

$ 32 95
/ Each

Available: 3

Summary

The Twist Lock Installation Driver is a simple manual setting tool for twist lock studs with a single screw base, also known as common sense or turn button fasteners.

Full Description
Jump To:

Description

The Twist-Lock Driver is specifically designed to manually install the Twist-Lock Single Screw Stud into fiberglass or wooden surfaces. The comfortable cellulose acetate handle is large enough to grip the tool and apply sufficient turning force. A fluted handle design keeps the tool from rolling off when not in use. Please note that pre-drilling a hole is recommended prior to installation. For wooden surfaces, a #7 screw typically requires a 7/64" drill bit for pre-drilling. For most fiberglass applications, a 1/8" drill bit is advised. As this is a manual driver, it allows the installer to gauge the amount of pressure needed to drive the threaded screw into fiberglass. If the installation force appears excessive, the installer should stop and slightly enlarge the pre-drilled hole to prevent spidering or gelcoat crazing in the fiberglass. Sailrite also recommends chamfering the pre-drilled hole in fiberglass to further reduce the risk of spidering. To ensure proper sealing (bedding) of the fastener in fiberglass and prevent water leaks, use “Trimmable Butyl Tape.”

Specifications

BrandC.S. Osborne
