HandyPress® Belt 5-Hole Positioning Punch

Exclusive

SKU: 126940

product image zoom product image
product image
product image
product image

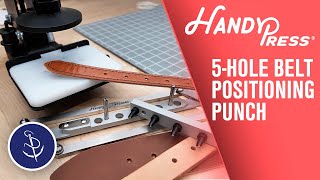

5-Hole Leather Belt Positioning Punch
product image

HandyPress® Belt 5-Hole Positioning Punch

Exclusive

SKU: 126940

Price per Each

$ 99 95

Available: 298

Summary

Punch holes in leather belts and straps faster and more accurately with the HandyPress® Belt 5-Hole Positioning Punch. This tool punches five holes at once, saving you time and effort.

Full Description
Jump To:

Description

Punch holes in leather belts and straps faster and more accurately with the HandyPress® Belt 5-Hole Positioning Punch. This tool punches up to five holes at once, saving you time and effort. Its hinged base adjusts to fit the width of your leather strap, ensuring the holes are perfectly centered every time. A detent ball on the bottom of the base locks into a previously punched hole for easy alignment and consistent spacing when more holes are desired. The ball facilitates accurate indexing spacing. Simply remove individual punches to change the final number of holes. Fits straps 5/8" to 2" in width.

Minimum Leather Thickness: 2 oz.
Maximum Leather Thickness: 15 oz.
Hole Size: 9/64” (3.5mm)
Hole Spacing: 1 inch

Assembly:

  1. Locate the two silver positioning pins and thread them into the middle bar of the punch base (side with HandyPress logo facing up when doing this).
  2. Thread the five punch tubes into the threaded holes of the separate shorter bar.

To Use:

  1. With the HandyPress Workbench, Cutting Board and Round Upper Press Plate installed, place your leather strap on top of the Cutting Board.
  2. Place the punch base on the leather and adjust the hinged frame to squeeze the strap firmly.
  3. Thread the 5-hole punch piece onto the punch base through the two positioning pins.
  4. Set the tool for appropriate compression as directed in the HandyPress guidebook.
  5. Holding your leather strap in place with one hand, pull the handle down to punch through the strap.

Note: This positioning punch was designed for the HandyPress. You cannot use a maul or hammer to manually punch holes using this tool. To see if it is compatible with your hand press, check the Dimensions tab and verify that it will attach to your press.

Specifications

BrandHandyPress
Warranty90 Days

Minimum Strap Width: 5/8"
Maximum Strap Width: 2"
Hole Size: 9/64"
Spacing Between Holes: 1"

Dimensions

product image dimensions

HandyPress Belt 5-Hole Positioning Punch

A. 1" (25.4mm)
B. 5/8" (15.875mm)
product image dimensions

HandyPress Belt 5-Hole Positioning Punch (Assembled)

C 3.0" (77.2mm)



product image dimensions

9/64" Economy Punch Tube

A. M8 x 1.0
B. .23" (6mm)
C. .55" (14mm)
D. 9/64" (3.5mm)
