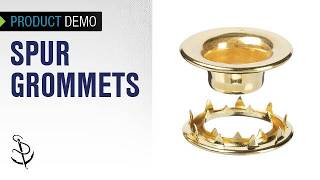

Spur grommets are not as strong as sewn rings, but they are much more quickly installed. Do not confuse these grommets with the common washer grommets that are sold in hardware stores everywhere. Spur grommets are of heavier metal with spurs all around the inside rim of the washer that lock into a rolled edge on the barrel part of the grommet. As a result, they will not easily pull out of the fabric.
Nickel-plated brass spur grommets will work for most applications. Nickel-plated brass is more corrosion-resistant than stainless steel. However, if you need grommets for high-stress, load-bearing applications, use stainless steel spur grommets.
Note: Spur grommets cannot be installed with common washer grommet tools. Use a #2 die with a #2 spur grommet.
|Hardware Material:||Brass, Metal, Nickel Plated|
|Hole Diameter (before installation):||3/8 inch|
|Hole Diameter (after installation):||7/16 inch|
|Outer Diameter:||7/8 inch|
|Min. Material Thickness:||0.058 inch|
|Max. Material Thickness:||0.168 inch|
|Min. Layers Marine Grade Solution Dyed Acrylic Fabric:||3 Layers|
|Max. Layers Marine Grade Solution Dyed Acrylic Fabric:||7 Layers|
