Sailrite® Standard Fabricator® Sewing Machine Package (220–240V)
SKU: 400501
$1,795.00/EA
3 Available

Description

The Sailrite® Fabricator® is a sewing machine to build your business on. A full-size industrial, straight stitch sewing machine with a compound walking foot, the Fabricator was designed for serious DIYers as well as canvas, upholstery or awning shops. This best-in-class sewing machine offers high-quality castings and machined parts ensuring it will be a dependable machine for years to come. Perfect for the detail-oriented sewist, the Fabricator lets you sew stitch-by-stitch at full power. Turn to the Fabricator for sewing heavy canvas, awning fabrics, upholstery fabrics, denim, soft-medium weight leather and drapery fabrics.

This Fabricator package features 220-240 volt power (50 Hz) with 2-pin European plugs.

The Workhorse® Servo Motor

Powering the Fabricator is the Sailrite Workhorse® Servo Motor, a 550 watt, 3/4 horsepower motor, that provides a fluid motor to machine power transfer. The Workhorse features fully adjustable speed settings—you can set your top stitching speed and maintain variable speed control. It also runs quietly and is both energy-saving and durable. The Workhorse is used in conjunction with a cogged timing belt and our oversized Stitch PRO Balance Wheel. This arrangement is the first of its kind with a servo motor and provides maximum power while maintaining slow-speed sewing control. The combination of the oversized Stitch PRO Balance Wheel and single belt acts as an integrated speed reducer.

Patented Posi-Pin® Safety Shear

For the first time on an industrial machine, the Fabricator is also fitted with Sailrite’s patented Posi-Pin® Safety Shear (Patent #7438009), which protects your machine from damage. If you sew over something you shouldn’t, the pin will break and your machine will stop operating in order to protect the machine. Pulling the pin out also makes the machine stop working, which is an excellent bonus safety feature. Additionally, the Posi-Pin lets you disengage the balance wheel when winding bobbins, reducing wear and tear on the machine's internal components.

Helpful Features

The Fabricator offers many extra features to make sewing easier. Like other industrial sewing machines, the Fabricator features a large rotary hook, which reduces the frequency of bobbin winding, and plenty of underarm space for comfortable sewing, even with larger projects. An extra high foot lift easily fits thicker assemblies, but the Fabricator will also sew thinner assemblies, so it can be your go-to machine for all kinds of projects! The laser engraved needle plate features helpful guides for seam allowance. Quickly raise the presser foot with the built-in knee lift. Plus, an attached bobbin winder mechanism lets you wind bobbins without unthreading your machine and allows for bobbin winding while you sew.

Standard Setup

You'll be excited to up your sewing game with our Sailrite Standard Fabricator setup. Our double-laminated tabletop is custom made for Sailrite in the USA. It's made from 1-1/2-inch-thick, sturdy plywood. The table is laminated with melamine on both the top and bottom, which increases table strength and prevents the table from longterm bowing from the weight of the machine. Industry-standard table legs provide a sturdy sewing experience. The exclusive Sailrite® Flex20 LED Light provides a bright, concentrated beam of light for accurate sewing. The 7-inch flexible neck allows you to position the light right where you need it. The Flex20 LED Light provides up to 50,000 hours of light without getting hot. Assembly of the tabletop is required.

Top Notch Customer Support

At Sailrite, we’re proud to support every sewing machine that we sell. Each machine is finished and tuned in Sailrite’s Indiana workshop by our sewing machine technicians. You’ll also receive an in-depth guidebook that walks you through set-up and use of your Fabricator as well as detailed troubleshooting instructions and parts schematics. To top it all off, we offer personalized technical support directly from sewing machine technicians here at Sailrite.

Our Support Guarantee

At Sailrite, we are committed to helping you get the most out of your Fabricator Sewing Machine. That’s why we are proud to offer you personalized support for the lifetime of your machine. We’ll be here to help you service your machine with in-depth videos, one-on-one support and Sailrite’s 2-year limited warranty. Should you need them, we have replacement parts in stock and ready to ship out to you and, if all else fails, you can always send your machine back to us for repairs.

Includes:

  • Sailrite® Workhorse® Servo Motor (220-240 V)
  • Sailrite Stitch PRO Balance Wheel
  • Patented Posi-Pin® Safety Shear
  • Flex20 LED Light (220-240 V)
  • Belt cover and belt
  • Industrial Tabletop and K-legs
  • Knee lift
  • Table drawer
  • Support pin
  • Industrial thread stand
  • Bobbin winder
  • Oil
  • Oil pan/reservoir
  • 3 Screwdrivers
  • Needle Assortment Pack with Deluxe Seam Ripper & Lint Brush
    • #14 Round Point (Sharp) Needles (10 pack)
    • #16 Round Point (Sharp) Needles (10 pack)
    • #18 Round Point (Sharp) Needles (10 pack)
    • #20 Round Point (Sharp) Needles (10 pack)
    • Double-sided lint brush
    • Deluxe Seam Ripper
  • 4 - #23 (135 x 17) needles
  • 1 - #22 (135 x 17) needle installed in machine from Sailrite
  • 4 oz. V-92 thread
  • 5 Large capacity "Style M" bobbins
  • Sailrite® Fabricator® Guidebook

Specifications

Machine Series: Fabricator
Certifications: CE Mark
Sewing Speed: Stitch-by-Stitch up to 1,108 stitches/minute
Straight Stitch Length: Max. 8mm
Presser Foot Lift: 14mm (9/16") Knee Lift, 6.5mm (1/4")
Feed Type: Compound Walking Foot
Shuttle: Full Rotary (Gear Driven)
Power: 110V A.C., 3/4th hp, 4.5 amps
Needle Bar Stroke: 37mm
Lubrication: Automatic
Underarm Space: 10.25" x 5"
Bed Size: 18.75" x 7"
Tabletop Dimensions: 47.5" W x 20" D
Bobbin Size: Style M
Compatible Needles: System 135 x 16, System 135 x 17
Needle Size Range: #10–#24
Thread Size Range: V-30–V-138
Brand: Sailrite
Weight: 130 lbs. assembled, 175 lbs. total shipping weight
Minimum Table Height: 28"
Maximum Table Height: 34"
Warranty: 2 Years
Fabricator Sewing Machines are assembled in the United States with components from the United States and China.

Videos

Sailrite® Fabricator Sewing Machine in Power Stand with Workhorse Servo Motor Demo

Introducing the Sailrite Standard Fabricator Sewing Machine. A full-sized industrial, straight stitch sewing machine with a compound walking foot, the Fabricator is designed for both professionals and avid DIYers. In this video, we demonstrate its awesome performance and touch on the many aspects that set it apart from all other sewing machines in its class.

Sailrite Fabricator Sewing Machine Use Video

Watch this video to see the Fabricator in action! You'll learn basic "getting ready to sew" steps including how to thread the machine, how to wind bobbins, how to adjust tension, how to change the needle, and so much more.

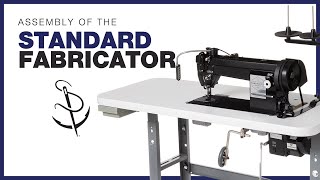

Sailrite Standard Fabricator Sewing Machine Setup & Assembly Video

This video shows, step by step, how to set up the Fabricator. We show you every step of how to build the table, how to install the treadle and Workhorse Servo Motor, and how to install the machine head in the table, add the belts, and make final adjustments.

Comparing the Fabricator® Deluxe & Standard Package

Watch this short video to learn more about each Fabricator package and which one is right for you.
