HandySnap® Installation Tool
SKU: 127190
HandySnap® Installation Tool
SKU: 127190
Available: 125
Save 10% on everything with code SAIL10.
Don’t miss out! Ends 5/27/26 at 8 a.m. ET.

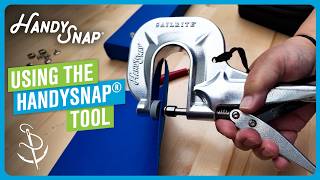

Install snaps quickly and cleanly with the HandySnap® Tool by Sailrite®. This all-in-one tool punches and sets in a single operation and includes four dies for standard and one-way snaps. Sets stainless steel snaps too!
Description
The HandySnap® Tool by Sailrite® is a professional-grade fastener installer designed for efficient, consistent snap installation across a wide range of materials. Built for durability and precision, this versatile tool comes with four interchangeable dies, allowing you to install standard Line 24 snap components—including buttons, sockets, studs, and eyelets—as well as Pull-The-DOT® (one-way) sockets using the same setup.
Engineered to streamline your workflow, the HandySnap Tool punches the hole and sets the snap in a single operation, eliminating the need for pre-punching in most fabric or leather assemblies. Its adjustable compression knob, similar to the function of Vise-Grips, allows you to fine-tune the applied pressure for secure, professional-quality results every time.
Whether you’re working on marine canvas, upholstery, or DIY projects, this tool is a reliable addition to any workspace where snaps are frequently installed. It can be used handheld or mounted to a workbench with the optional Bench Mount for added stability and efficiency.
This tool includes:
- Button Die
- Socket Die (compatible with Pull-The-DOT®/one-way sockets)
- Stud Die
- Eyelet Die
- Storage Case
Beyond standard snaps, the HandySnap Tool offers expanded functionality with a wide range of optional add-on die sets. With additional dies, you can install specialty fasteners and grommets such as Twist-Lock fasteners, Lift-The-DOT® eyelet-type studs, gypsy studs, and multiple sizes of plain and spur grommets.
Available add-on dies include:
- Stud to Gypsy Stud Die (#100899)
- Lift-The-DOT® Eyelet-Type Base Die Set (#106397)
- Turn Lock Die Set (#104993)
- #1 Hole Cutter Die 5/16" (#100908)
- #2 Hole Cutter Die 3/8" (#100909)
- #00 Plain Grommet Die 3/16" (#102894)
- #0 Plain Grommet Die 1/4" (#123588)
- #1 Plain Grommet Die 5/16" (#102452)
- #2 Plain Grommet Die 3/8" (#102213)
- #3 Plain Grommet Die 7/16" (#121601)
- #0 Spur Grommet Die 1/4" (#103629)
- #1 Spur Grommet Die 5/16" (#100971)
Save time and effort on your next project with a tool designed to deliver fast, clean, and reliable results—job after job.
Specifications
| Brand | HandySnap |
|---|
Dimensions
| Throat Dimensions (No Dies) | |
|---|---|
| A. | 1.635" (41.53mm) |
| B. | 3.189" (81.00mm) |
| C. | 1.800" (45.53mm) |
| Case | |
|---|---|
| A. | 14.750" (374.65mm) |
| B. | 7.700" (195.58mm) |
| Thickness: | 2.350" (59.45mm) |
